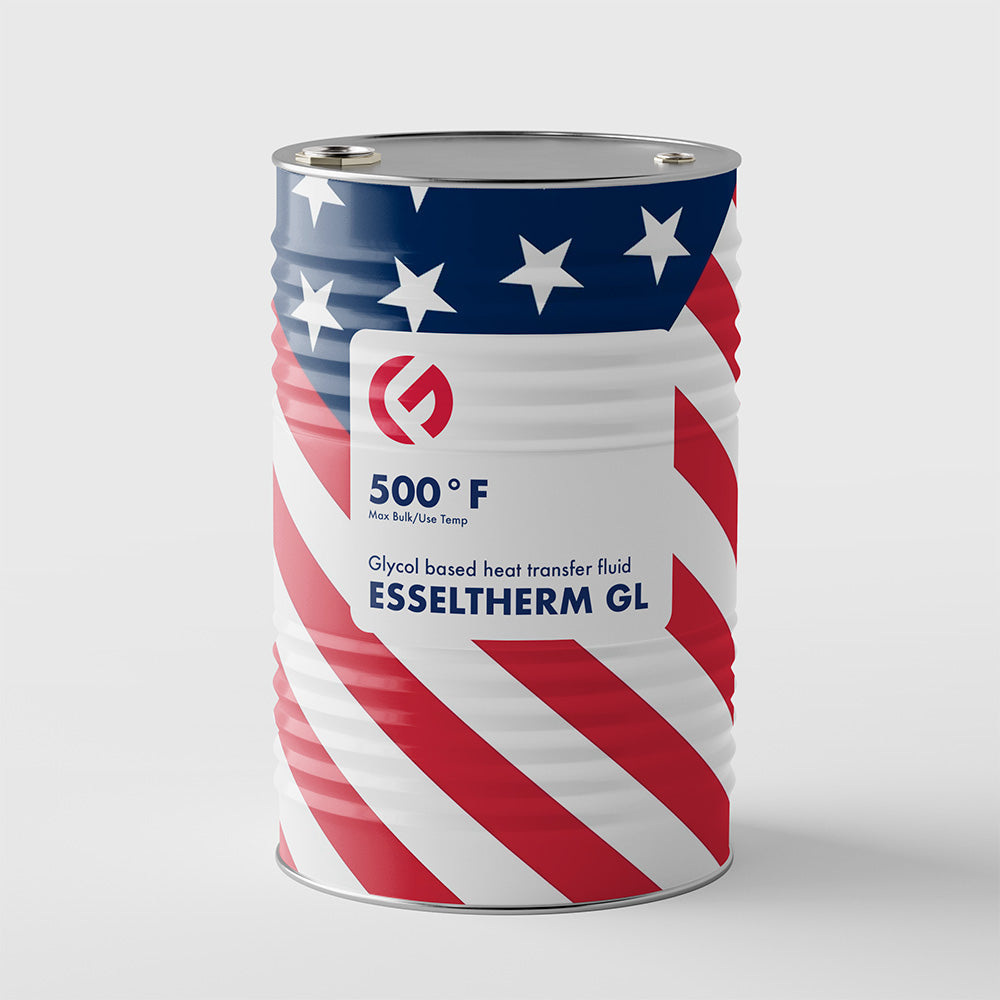

ESSELTHERM GL Polyalkylene Glycol Heat Transfer Fluid (500°F)
ESSELTHERM GL Polyalkylene Glycol Heat Transfer Fluid (500°F)
Couldn't load pickup availability
A polyalkylene glycol (PAG) based heat transfer fluid rated to 260°C (500°F) with a 249°C (480°F) flash point and a proprietary additive system for longevity and cleanliness in extreme oxidation environments, including open-bath applications.
Used in open heating baths and vented systems, textile and finishing lines, laboratory and pilot-plant heating, and any application where a non-fouling, high-flash-point glycol fluid is preferred over mineral oil.
Available to order from SDI Chemicals. Technical data sheet, SDS and compliance documentation are provided on request; freight and lead time are quoted to your destination, with flexible order quantities. Request a quote with your system volume and delivery ZIP.
Key features
- Maximum operating temperature 260°C (500°F)
- High flash point of 249°C (480°F)
- Suited to extreme oxidation environments, including open-bath systems
- Polyalkylene glycol-based thermal fluid with proprietary additive system
- Low pour point of -40°F for cold-start capability
Specifications
Temperature ratings
| Max bulk / use temperature | 500°F |
| Max film temperature | 550°F |
| Pour point, ASTM D445 | -40°F |
Safety data
| Flash point, ASTM D92 | 480°F |
| Fire point, ASTM D92 | 505°F |
| Autoignition, ASTM E-659-78 | 690°F |
Thermal properties
| Thermal expansion coefficient | 0.0377 %/°F |
| Thermal conductivity, 100°F / 212°F / 399°F / 500°F | 0.105 / 0.101 / 0.095 / 0.092 BTU/hr·ft·°F |
| Heat capacity, 100°F / 212°F / 399°F / 500°F | 0.472 / 0.488 / 0.514 / 0.528 BTU/lb·°F |
Physical properties
| Viscosity, ASTM D445, 40°F / 100°F / 260°F | 262.67 / 46.07 / 4.71 cSt |
| Density, ASTM D1298, 100°F / 212°F / 399°F / 500°F | 57.46 / 56.35 / 54.53 / 53.54 lb/ft³ |
| Vapor pressure, ASTM D2879, 100°F / 212°F / 399°F / 500°F | 0.04 / 0.13 / 0.35 / 0.51 psia |
| Distillation range, ASTM D2887, 10% / 90% | 694°F / 957°F |
| Specific gravity @ 60°F | 0.963 |
- Brand: ESSELTHERM (distributed by SDI Chemicals)
- Product code: ESSELTHERM GL
- Pack size: drums and totes standard; pails and bulk tankers quoted on request
- Documentation: TDS / SDS available on request
