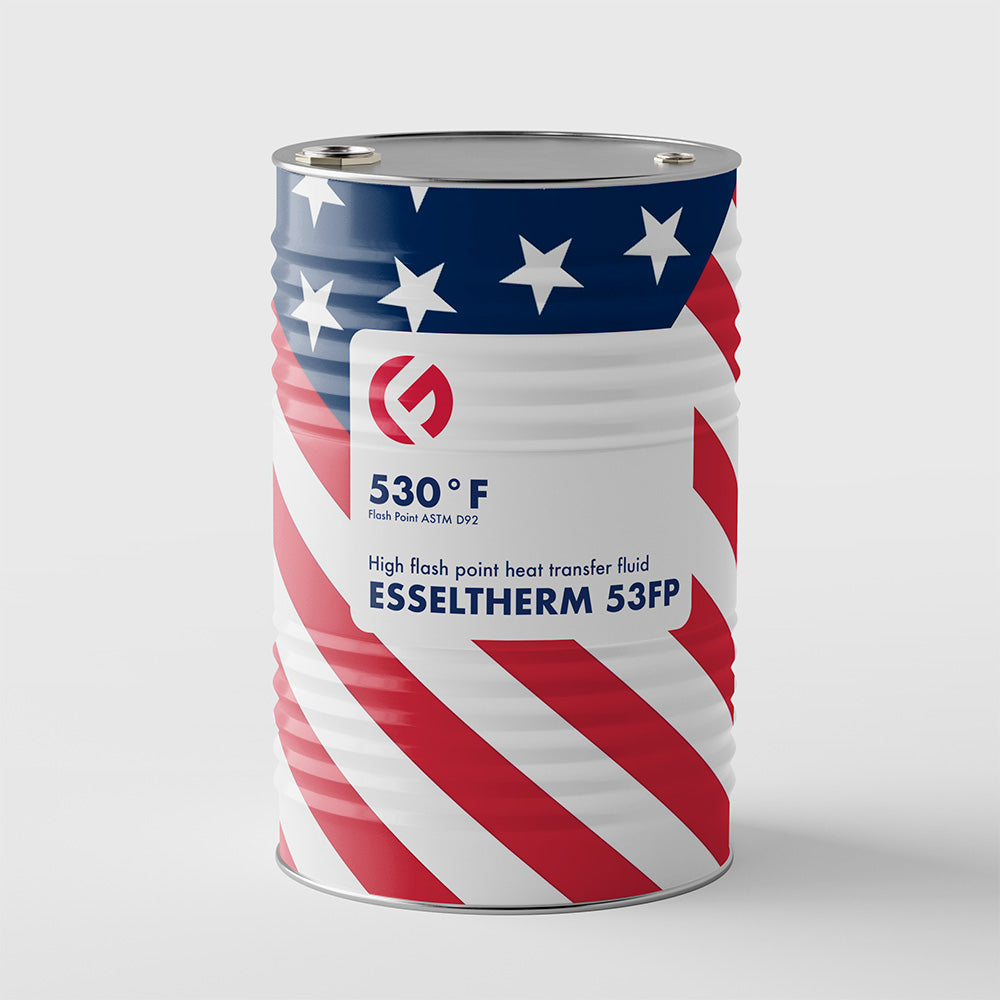

ESSELTHERM 53FP High Flash Point Heat Transfer Fluid (640°F)

ESSELTHERM 53FP High Flash Point Heat Transfer Fluid (640°F)

Sale Request for Quote
Shipping calculated at checkout.
Request for Quote

A thermally stable heat transfer fluid with a 277°C (530°F) flash point and a maximum operating temperature of 338°C (640°F), for process heating and cooling where a high flash point is required for safety or insurance reasons.

Used in high-temperature industrial heating where a high flash point reduces fire risk: chemical and polymer reactors, hot-oil systems near ignition sources, drying and curing lines and indoor process plants.

Available to order from SDI Chemicals. Technical data sheet, SDS and compliance documentation are provided on request; freight and lead time are quoted to your destination, with flexible order quantities. Request a quote with your system volume and delivery ZIP.

Key features

  • Flash point 277°C (530°F), among the highest available for mineral-based heat transfer oils
  • Maximum operating temperature 338°C (640°F)
  • Cost-effective and thermally stable
  • Runs cleaner with a longer service life
  • Industrial grade; the food-grade equivalent is ESSELTHERM 53FP-F

Specifications

Temperature ratings

Max bulk / use temperature 640°F
Max film temperature 680°F
Pour point, ASTM D445 15°F

Safety data

Flash point, ASTM D92 530°F
Fire point, ASTM D92 582°F
Autoignition, ASTM E-659-78 740°F

Thermal properties

Thermal expansion coefficient 0.0562 %/°F
Thermal conductivity, 100°F / 399°F / 500°F / 550°F / 630°F 0.086 / 0.084 / 0.084 / 0.083 / 0.083 BTU/hr·ft·°F
Heat capacity, 100°F / 399°F / 500°F / 550°F / 630°F 0.448 / 0.518 / 0.542 / 0.554 / 0.572 BTU/lb·°F

Physical properties

Viscosity, ASTM D445, 40°F / 100°F / 260°F 1076.69 / 116.57 / 7 cSt
Density, ASTM D1298, 100°F / 399°F / 500°F / 550°F / 630°F 53.63 / 49.83 / 48.55 / 47.92 / 46.91 lb/ft³
Vapor pressure, ASTM D2879, 100°F / 399°F / 500°F / 550°F / 630°F 0 / 0.02 / 0.22 / 0.61 / 3.66 psia
Distillation range, ASTM D2887, 10% / 90% 834°F / 1030°F
Molecular weight 399
Specific gravity @ 60°F 0.867
  • Brand: ESSELTHERM (distributed by SDI Chemicals)
  • Product code: ESSELTHERM 53FP
  • Pack size: drums and totes standard; pails and bulk tankers quoted on request
  • Documentation: TDS / SDS available on request
